Scroll compressors are the standard choice for applications where any level of oil contamination would be unacceptable, including pharmaceutical manufacturing, food and beverage, dairy, medical, and electronics. PneuTech's RSCRXA range produces 100% oil-free, Class 0 compressed air at noise levels suitable for factory floor installation, with thousands of hours of trouble-free operation.

Features

1 100% Oil-Free Class 0 Air

Delivers clean, contaminant-free compressed air with no oil, silicone, or hydrocarbon carryover — ideal for medical, food, beverage, and other critical applications.

2 Clean, Safe Air Output

No friction parts inside the compression chamber means air remains free from metal particles and contaminants, reducing the need for additional filtration.

3 Ultra-Quiet & Low Maintenance

Operates from just 60 dBA for quieter workplaces, while the friction-free design minimises wear, servicing, and ongoing maintenance costs.

4 Reliable, Energy-Efficient Performance

Powered by the proven Anest Iwata scroll airend with PLC-controlled multi-stage operation for dependable performance and efficient air delivery that adapts to demand.

Model

CFM

PSI

dBA

Weight

RSCR5XA-8

116

230kg

RSCR10XA-8

116

280kg

RSCR15XA-8

42.3

116

450kg

RSCR20XA-8

116

650kg

RSCR30XA-8

116

900kg

RSCR40XA-8

123

116

1300kg

RSCR50XA-8

148

116

1050kg

RSCR60XA-8

176

116

1640kg

Not sure where to start? We’re here to help.

Scroll Compressors Brochure

Discover the RSCRXA scroll compressor range, delivering oil-free air with ultra-quiet, energy-efficient performance. Powered by the world-renowned Anest Iwata airend, these compressors are built for reliable operation in demanding industrial environments.

Download brochure ›

Make an enquiry

Have a question or need advice about your compressed air system? Talk to our specialist team today. We’ll review your requirements, answer your questions, and recommend the best solution for your plant.

Enquire now

2-year warranty

24/7 Support

Free delivery

Eco friendly

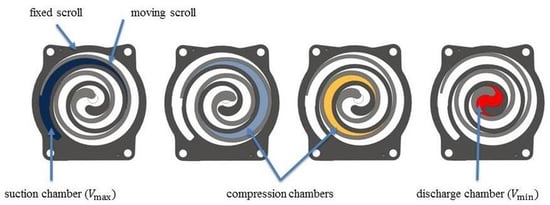

What is a scroll compressor and how does it work?

A scroll compressor uses two interleaving scrolls — one stationary and one orbiting — to compress air. As the orbiting scroll moves, trapped air is gradually reduced in volume, increasing pressure efficiently and quietly.

What are the benefits of an oil-free scroll compressor?

Oil-free scroll compressors produce clean compressed air without oil contamination, making them ideal for industries such as medical, food & beverage, pharmaceutical, and chemical manufacturing where air purity is critical.

How quiet is the RSCRXA scroll compressor?

The RSCRXA series is designed for ultra-quiet operation, with noise levels starting from just 60 dBA thanks to soundproof insulation. This allows the compressor to operate comfortably inside working environments.

Does a scroll compressor require a lot of maintenance?

No. Because there are no touching or friction parts inside the compression chamber, wear and tear is minimal. The RSCRXA series also eliminates the need for oil and filter changes, helping reduce maintenance costs and downtime.

What makes the RSCRXA series energy efficient?

The RSCRXA 10–60 models feature PLC-controlled multiple scroll modules that adjust air delivery based on demand. Combined with the high-performance Anest Iwata airend and no offload cycle, this helps minimise energy waste and reduce running costs.
