That perfectly sealed packet of ham that's still fresh after 21 days didn't happen by accident. Modified Atmosphere Packaging (MAP) has revolutionised food preservation by swapping oxygen for nitrogen or carbon dioxide, creating hostile environments for bacteria while keeping products appealing to consumers.
Behind every successful MAP operation sits a compressed air system that most people never think about. Pneumatic actuators control film movement and cutting. Valves manage precise gas delivery. Vacuum pumps draw out atmospheric air before flushing with protective gases. When the air quality drops or pressure fluctuates, the entire process falls apart.
Air quality standards: contamination kills products
Food packaging demands ISO 8573-1 Class 1 or 2 air quality. Your compressed air must be oil-free, bone dry, and stripped of particulates that could contaminate products or disrupt packaging precision.
Multi-stage filtration is non-negotiable:
- Coalescing filters remove oil aerosols
- Particulate filters catch solid contaminants
- Activated carbon filters eliminate vapours and odours
- Desiccant or refrigerated air dryers control moisture levels
Additional supporting components like condensate traps and auto-drains prevent moisture buildup that could compromise air quality. Many MAP applications use oil-lubricated compressors with advanced filtration, but true oil-free compressors (Class 0) are ideal for high-risk or regulatory-heavy environments.
Need help choosing the right compressor? Try our air compressor selector tool to find your perfect match.
Pressure stability: timing is everything
MAP machines operate in narrow pressure windows, typically 6-8 bar (90-120 PSI). Pressure drops cause incomplete vacuum cycles. Pressure spikes damage delicate films. Fluctuations throw off the precise timing that makes gas flushing effective.
Your food grade air compressor needs rock-solid pressure regulation under varying loads, properly sized air receivers to smooth demand spikes, and downstream pressure control for different packaging components. Undersized systems create pressure drops during peak demand, leading to rejected packages and production delays.
Duty cycle requirements: built for continuous operation
Commercial MAP lines often run 16-24 hours daily. Your compressor needs either 100% duty cycle capability or sufficient storage capacity to handle continuous demand without overheating.
Rotary screw compressors are ideal for continuous use and energy efficiency. Reciprocating compressors can be suitable for intermittent or low-volume food packaging operations but require careful sizing to avoid short cycling.
Best compressor types for MAP applications
Different MAP operations have different requirements, and choosing the right compressor type depends on your production scale, hygiene standards, and budget constraints.
Oil-Free Rotary Screw Compressors
The premium choice for food-safe environments with continuous demand. Zero contamination risk, high airflow capacity, and often integrated with dryers and filtration for turnkey hygiene compliance.
Oil-Lubricated Compressors with High-Grade Filtration
Cost-effective option for operations where full Class 0 air isn't required. These systems require high-efficiency coalescing filters, activated carbon filters for vapour removal, automatic moisture separators, and rigorous maintenance schedules. Proper maintenance is critical because neglecting filters can compromise food packaging quality.
Scroll Compressors (smaller setups)
Quiet, oil-free, compact units ideal for small packaging rooms or mobile setups. Lower air output limits them to intermittent or precision-demand applications, but they're reliable workhorses in the right application.
Compressor sizing: avoid underspecification
Undersized compressors will cause pressure drops, lead to incomplete vacuum/gas cycles, and increase wear from short cycling.
Calculate peak airflow requirements (CFM or L/min), total number of pneumatic devices running simultaneously, desired runtime and cycle frequency for MAP machines, and future expansion plans with your supplier.
Oversizing slightly is better than undersizing because it protects quality and reduces wear. The extra upfront cost pays dividends through consistent performance and reduced maintenance headaches.
Supporting equipment: the complete system
Your food grade air compressor is just one piece of the puzzle. A reliable MAP air system depends on properly matched supporting equipment that works together to deliver consistent, clean air at the right pressure and flow rates.
Dryers
Desiccant units achieve ultra-low dew points for moisture-sensitive products. Refrigerated dryers offer cost-effective moisture control for less demanding applications.
Filtration Packages
Must match ISO 8573 standards for your industry. Skimping on filtration ruins everything downstream.

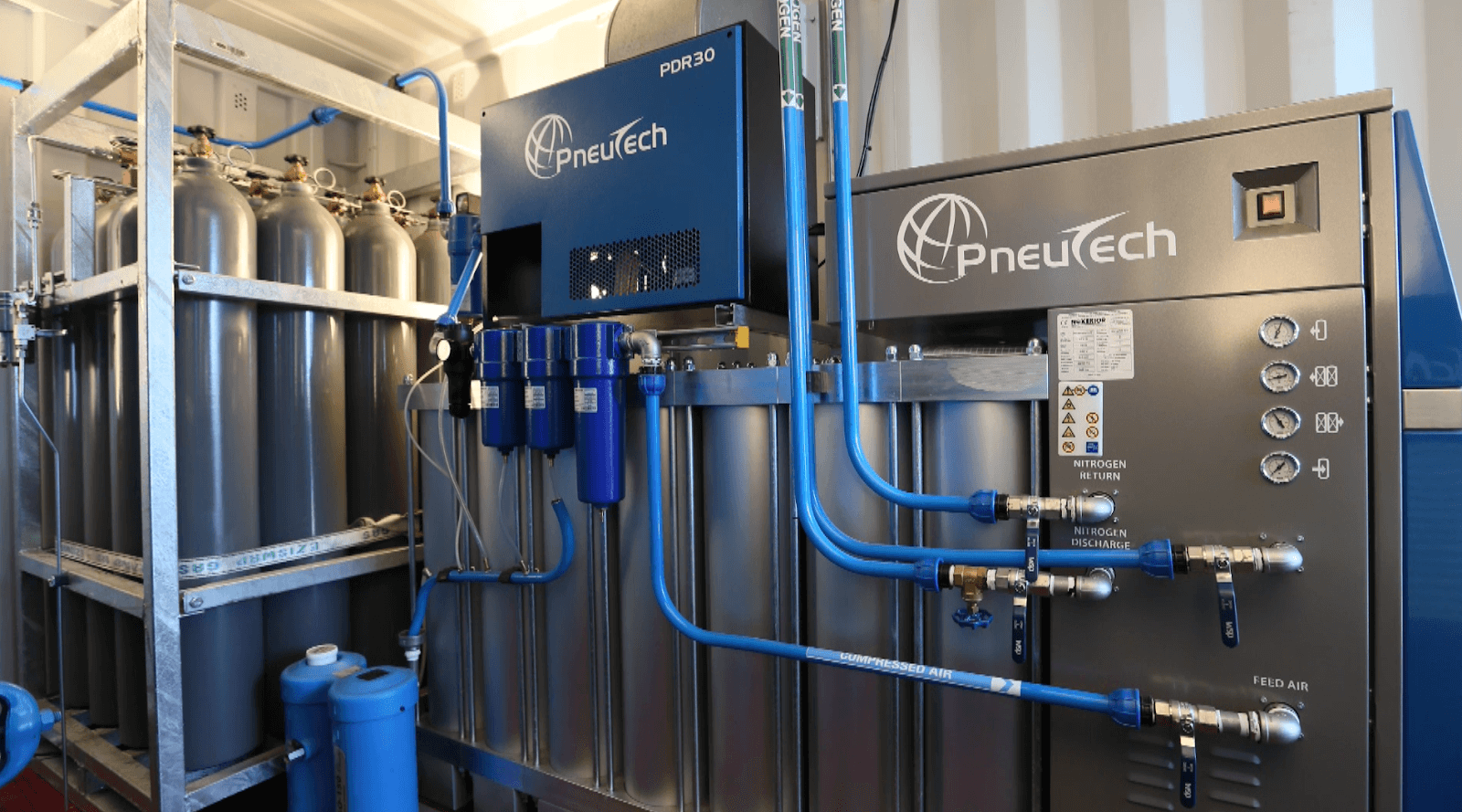

Nitrogen Generators
Eliminate bottled gas delivery costs and supply interruptions with on-site nitrogen generation. These systems produce high-purity nitrogen for consistent MAP operations.
Air Receivers
Store compressed air to smooth pressure variations and reduce compressor cycling frequency.
Monitoring Systems
Track pressure, flow, and air quality for compliance documentation and predictive maintenance.
Common mistakes that cost money
Using workshop compressors without proper filtration invites contamination disasters. Skipping air quality testing means problems develop invisibly until they become expensive. Neglecting filter and dryer maintenance gradually degrades performance until the whole system fails compliance standards.
Don't overlook maintenance schedules. Filters and dryers must be serviced regularly to maintain performance standards.
Real-world system examples
Putting theory into practice, here are two common MAP setups that demonstrate how different production scales require different approaches to compressed air systems.Small food packaging operation
- 7.5kW VSD oil-free screw compressor or oil-lubricated with food grade oil and correct filtration added
- 200L receiver tank
- Refrigerated dryer with 3-stage filtration
- Handles intermittent MAP cycles for 1-2 operators
High-volume pharmaceutical packager
- 11-15kW VSD Class 0 oil-free compressor or oil-lubricated with food grade oil and correct filtration added.
- Desiccant dryer achieving -40°C dew point
- Inline quality monitoring with alarm systems
- Built for 24/7 operation with redundancy
Protecting Your Investment
MAP packaging systems only work as well as the compressed air driving them. Whether you're sealing fresh produce, pet food, or pharmaceuticals, the right compressor ensures consistent pressure, pristine air quality, and reliable performance.
Price matters, but choosing based on cost alone ignores hygiene requirements, production demands, and regulatory compliance. A quality food grade air compressor pays for itself through reduced waste, consistent results, and passing inspections.
